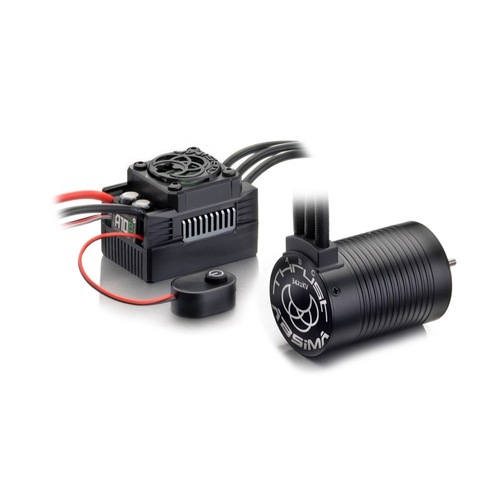

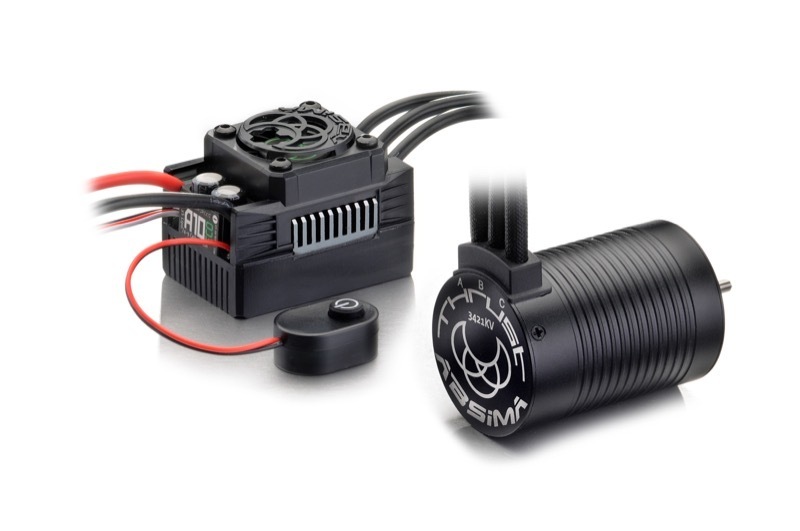

Our Thrust ECOV2 combo consisting of a sensorless brushless speed controller (ESC) and a 3421KV motor is designed for all owners of a 1:10 off-road or on-road vehicle. This system is ideal for converting from brushed to brushless or a complete rebuild. Thanks to the easy instalation and pre-confirigation from the factory, the set can be used immediately after installation.

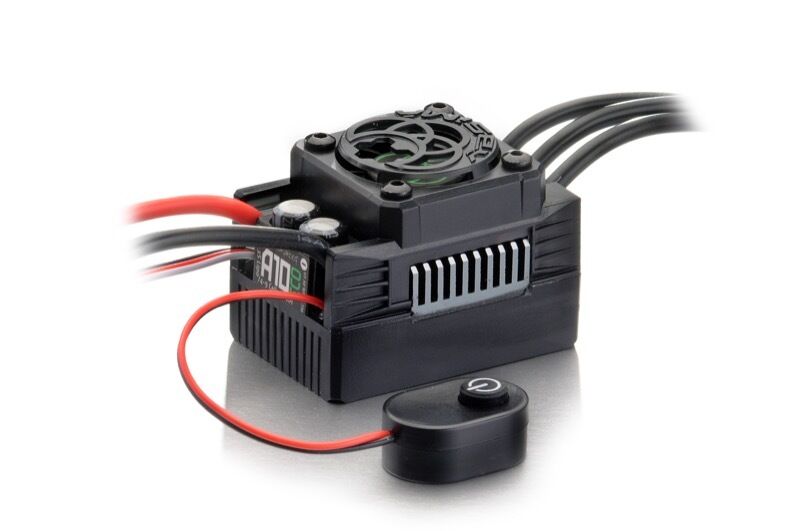

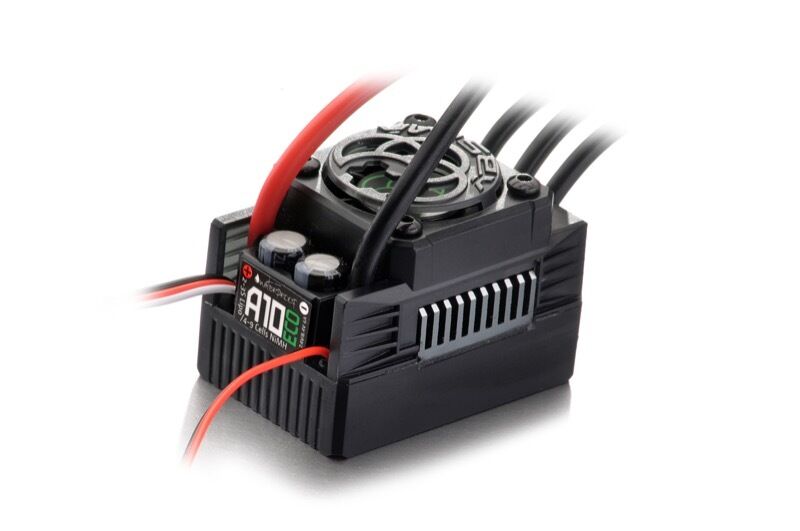

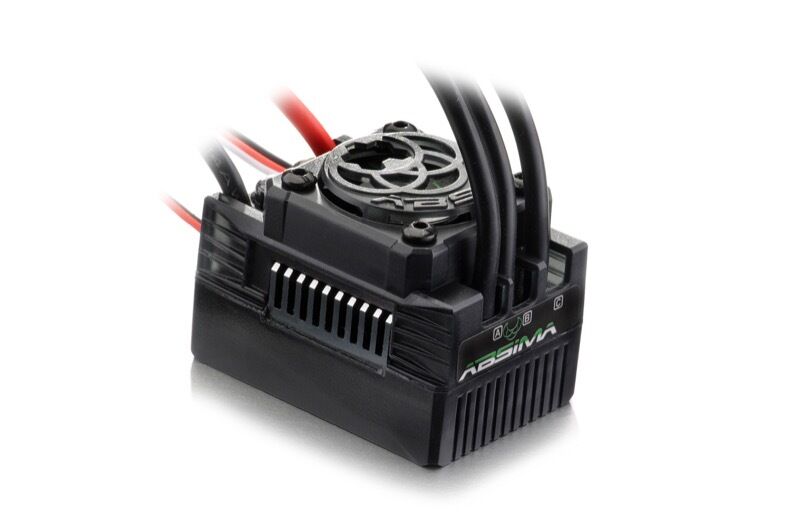

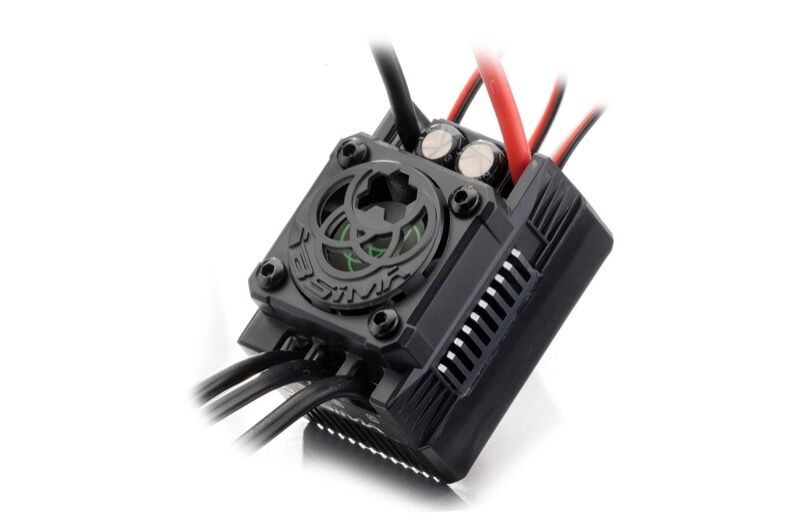

The speed controller is made of high quality and robust plastic. The fan and aluminum heat sink are protected from foreign objects by a stylish cover. High-quality black silicone motor cables (14AWG) and a user-friendly on/off switch complete the design.

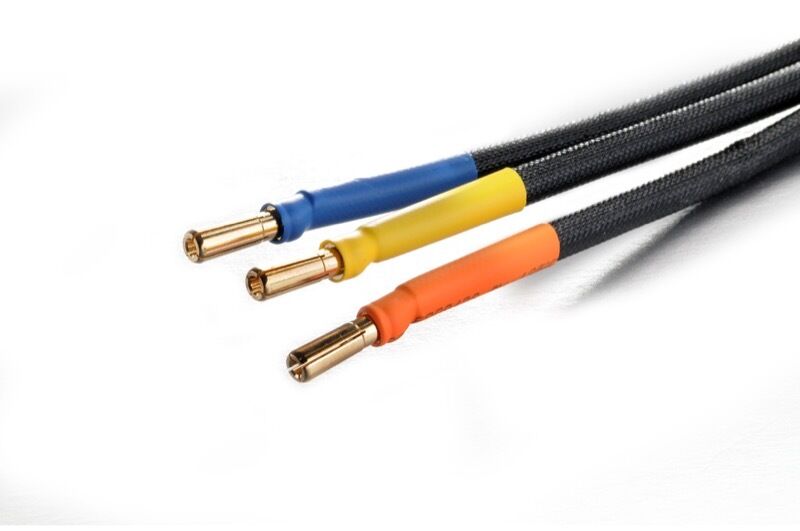

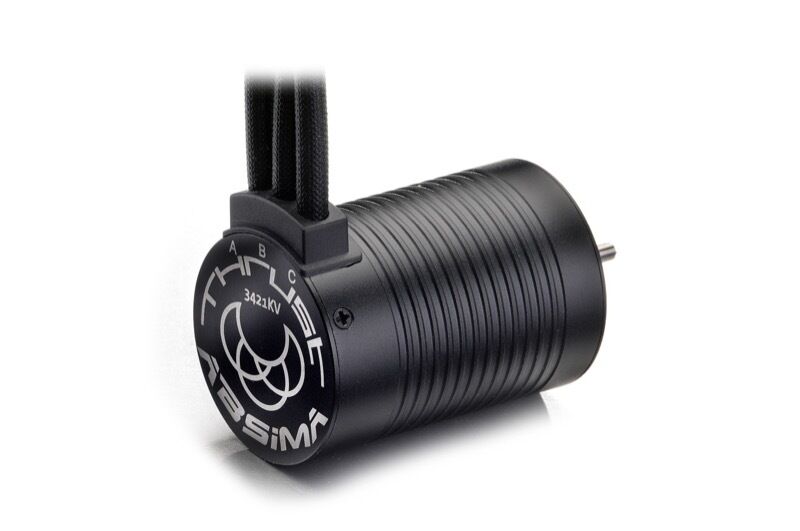

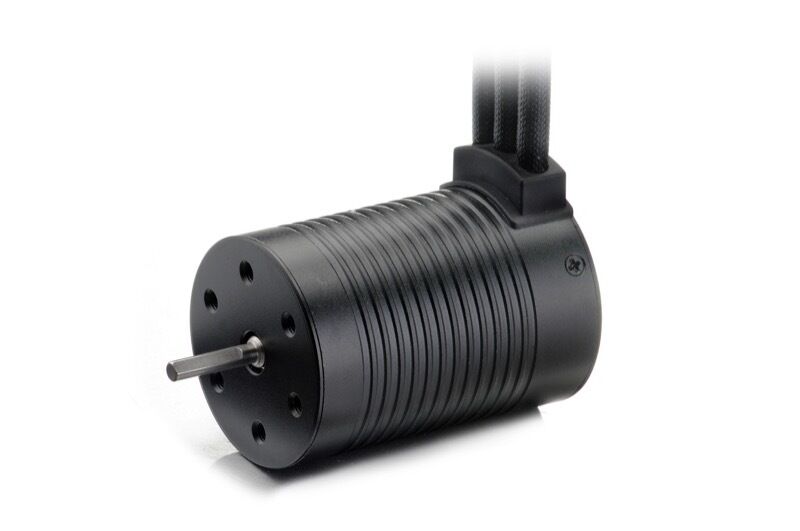

The motor's corrugated aluminum housing provides maximum surface cooling. Generous 3.5mm gold contact connectors provide a stable and resistance-reduced connection of the components.



For ideal adaptation to the vehicle chassis, we recommend the use of a programming box, which is available separately (part number 2110062).

With this box it is playfully easy to make the settings of the 10 different parameters.



Highlights:



•    2S & 3S LiPo suitable

•    Programmable via separately available programming box (2110062)

•    Ready-to-run out of the box



Features Brushless ESC:



•    Water-proof 60A ESC incl. cooling fan

•    2S & 3S LiPo suitable

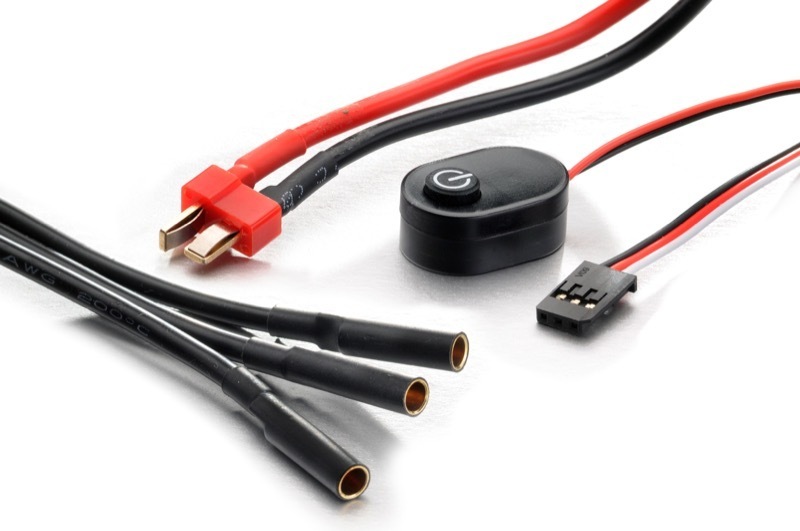

•    T-Plug battery plug

•    Motor connection via 3.5mm gold contact plugs and sockets

•    Immediately ready to drive (no configuration necessary)

•    Easy calibration

•    Sensorless system

•    NiMH 4 - 9 cells & LiPo* 2 - 3 cells operation (*recommended)

•    Overheat protection 120°

•    Short-term load: 360A

•    BEC 6.0V/7.4V 6A (switch mode)

•    Multiple protection functions

•    Operating voltage  4.8 – 11.1V

•    Motor timing  18.75 deg.

•    LiPo voltage cutoff: 3.1V/cell (factory setting, programmable)



Technichal Features ESC:



•    Dimensions (L/W/H): 50 x 35 x 37 mm

•    Weight incl. cable: 96 g

•    Motor limit @2S LiPo / 6 cells NiMH = On-road < 8T / Off-road < 11T and motor limit @3S LiPo / 9 cells NiMH = Onroad < 11T / Offroad < 14T



Features Brushless Motor:



•    Splash-proof

•    Aluminum housing

•    Sensorless operation

•    Overheat protection: 105°





Technichal Features Motor:



•    3421 KV

•    27.400 RPM @ 7.4 Volt

•    4 Pole

•    Operating voltage: 4.8 – 11.1V

•    Motor size: 540

•    Motor housing length: 52.0 mm

•    Motor housing Ø: 36.0 mm

•    Shaft length: 14.5 mm

•    Shaft Ø: 3,17 mm

•    Weight: 200 g



Scope of delivery:



•    1 pcs. Thrust Eco ESC (Item no. 2110007V2)

•    1 pcs. Thrust Eco Motor (Item no. 2130005)

•    Manual (german/english/french)



Recommended accessories:



•    Item 2110062 - Programm box for Thrust ECOV2 ESC
