Model No: 1005

Model Scale: 1/10

Vehicle type: Road racing car

Assembly time: Installing the battery

Completion level: RTR

Length: 478mm

Width: 209mm

Height: 158mm

Weight: 1.92KG

Front wheel track: 168mm

Rear wheel track: 168mm

wheelbase: 275mm

Ground clearance: 20mm

Transmission distance:

Travel time: 2S/10 minutes, 3S/10 minutes at full speed

Power type: Electric

Motor type: Brushless motor

Ball bearings: All vehicles

Differential: Two oil sealed gears

Drive system: 2/4 wheel drive

Drive Type: Forward/Brake/Reverse

Overall Drive Ratio:

Transmitters: Including

Receiver: Includes

Servo: Included

Speed Control: Included

Suspension: Independent

Car lights: Including

Type: HOBBYWING brushless motor

Weight: About 258.7g

Length: 52mm

Diameter: 36mm

Output shaft: 3.175mm

KV value: 4500

Connector Type: 3.5mm bullet connectors

HOBBYWING 60A Brushless ESC WP-10BL60

Input Voltage(cells): 6V-12.6V（2S-3S）

Continuous current: 60A

BEC Voltage: 6.0V

BEC persistent current: 3A

Waterproof grade: IPX7

Weight: About 96.5g

DUMBO X5E remote control and receiver

● 2.4G spread spectrum technology, FHSS 67-channel pseudo-random frequency hopping super anti-interference, full digital system ensures without loss of control and anti-jamming.
● Independent setting of servo direction and travel for channels 1 to 2.
● Receiver intefrated gyroscope, ensure that the model goes straight, prevents drifting, and overturning.
● The unique throttle speed limit adjustment function allows beginners to practice quickly at a safe speed.
● After accidentally entering the setting mode, it will automatically exit in 5 seconds, and the memory will not lost, and the subsequent control can still be normal.
● Transmitter voltage range: 4.8-12V, with automatic voltage identification alarm in 3 segments low voltage alarm 4.4V/7.4V/10.8V.
● Receiver voltage range: 4.8V-10V, operating current 30mA, support working with high voltage servo.
● With brakes and fail-safe protection function.
● There will be flashing music when switching on and off, automatic power off and alarm after 12 minutes, switching off after 15 minutes with no current.
● Ergonomically design with 30-degree beveled steering wheel and optional installation of one-handed accessories.

Tail-wing Servos

Case Size: 00×00×00mm

Weight: 9G digital servo

Steering Servo

Case Size: 00×00×00mm

Weight: 6KG digital servo

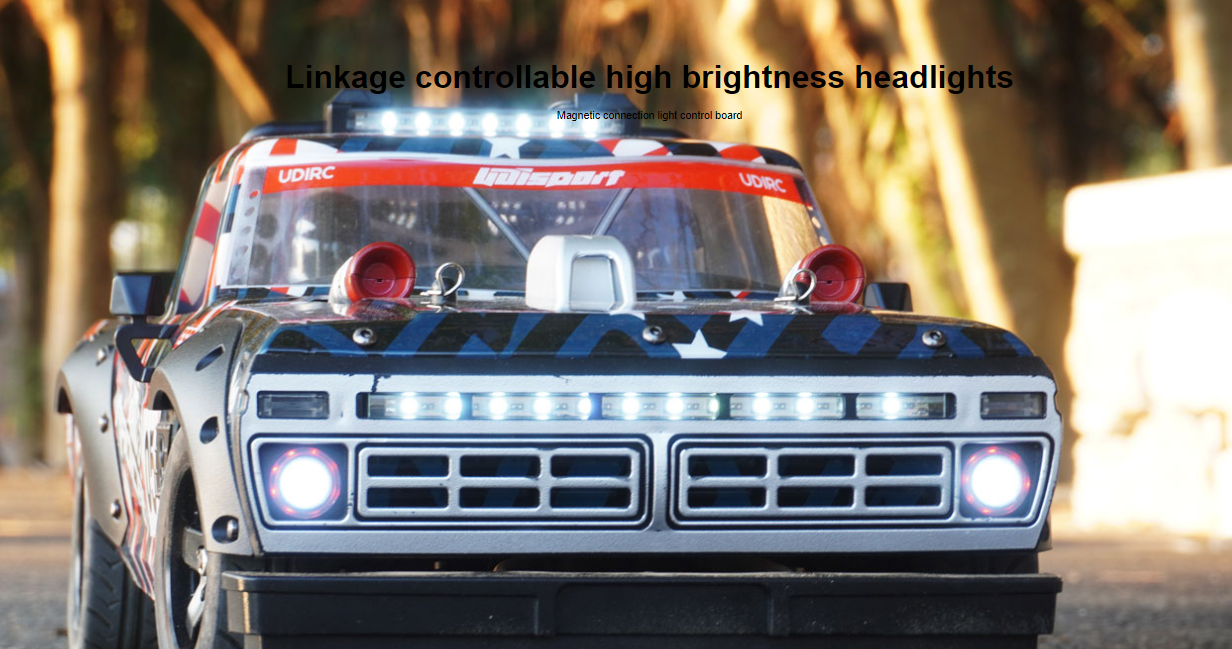

High Bright LED Lights
·Controllable headlights, Roof lights
·Linkage taillights
·Linkage turn signal

Decoration
·PVC material bodyshell
·Front and rear bumpers
·The wheels are equipped with brake disc type hexagonal adapters
·Simulated brake calipers
·Simulated suction device, fan

Wheels and Tires
·63mm highway tires

Equipped with high-speed sealed ball bearings throughout the vehicle

Hardware with rust-resistant native oxid coating

Suspension
·Provide proportional appearance and realistic drifting driving dynamics
·Front and rear independent suspension damping system
·Efficient metal drive shaft

Steering
·6KG digital Steering Servo
·Dual bellcrank design with bearings and integrated servo saver
·Adjustable steering linkage

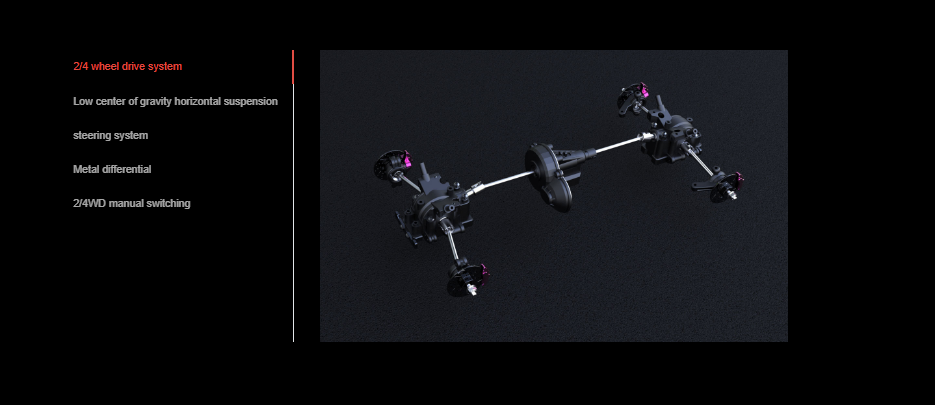

Drivetrain
·Adjustable center gear shifting
·Steel driveshafts
·Oil-immersed front/rear differential
·Heavy splined front drive shaft
·Fixed length metal rear drive shaft

What’s In The Box:
The vehicle with ESC and motor
2.4GHz radio system
Operation Guide
body stickers

What You’ll Need:
Battery for transmitter: 4 × 1.5V, AA lkaline battery
Vehicle battery: 2-3S, XT60, LIPO rechargeable battery
