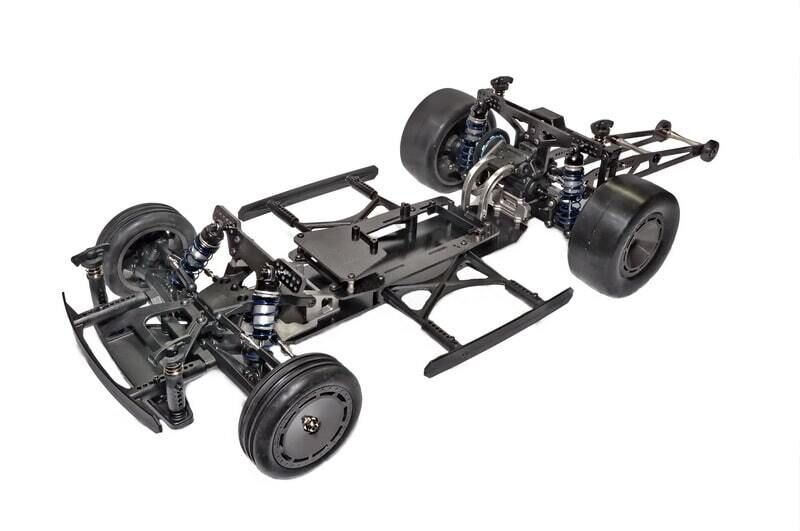

[FEATURES]

  • Mid-motor 3 gears design
  • Lightweight and rigid design, made up of lots of carbon fiber and hardened anodized aluminum alloy parts in overall structure.
    – 3mm carbon fiber chassis
    – 4mm carbon fiber front and rear tower
    – Carbon fiber wheelie bar set
    – Carbon fiber battery mount set
    – Carbon fiber ESC mount with battery platen plate.
  • All metal gear transmission with hardened steel shaft
    – Heavy duty metal sealed gear differential with 500K silicon oil
    – High strength steel 3 gear transmission design, 27T Idler gear / 51T Diff housing gear/ 21T lay-shaft gear
  • 280mm long wheelie bar set
    – Carbon fiber arm ,CNC Aluminum standoffs, Ball bearing
    – Height adjustable and fine-tuned, Tension arms with turnbuckle (Allows shock mounting,  #40059 or #40125)
    – Pair wheels with 26mm rubber tires
  • Rear floating body mount set
  • 3mm rear sway bar
  • 12mm big bore aluminum shock with silicon oil (soft front springs / hard rear springs)
  • Soft belted rear tire, 2.2”/3.0” ( material : natural rubber- IIR)
  • 10.5mm thick rear wheel hex
  • New front and rear rim
  • Adjustable battery mount set allows to fine-tune the battery position
  • 3.5mm hardened steel rear CVA shaft
  • Fully adjustable turnbuckle
  • Spur gear 84T, Optional 94T-48P (Optional part #OP1-0059)
  • New CNC aluminum suspension holder RF and RR
  • Adjustable body support for front and side
  • New design quick release body post
  • New front bumper with weight adjustment (Optional part #OP1-0060)

[REQUIREMENTS]

  • 2-Channel Radio/Transmitter Set
  • ESC & Motor
  • Pinion Gear for Motor
  • Glue for tire
  • Body and Paint for body
  • High-torque Steering Servo
  • LiPo Batteries
  • Battery Charger
  • Batteries for Transmitter

(HB-EX10)

SKU HB-EX10
Brand HOBAO
