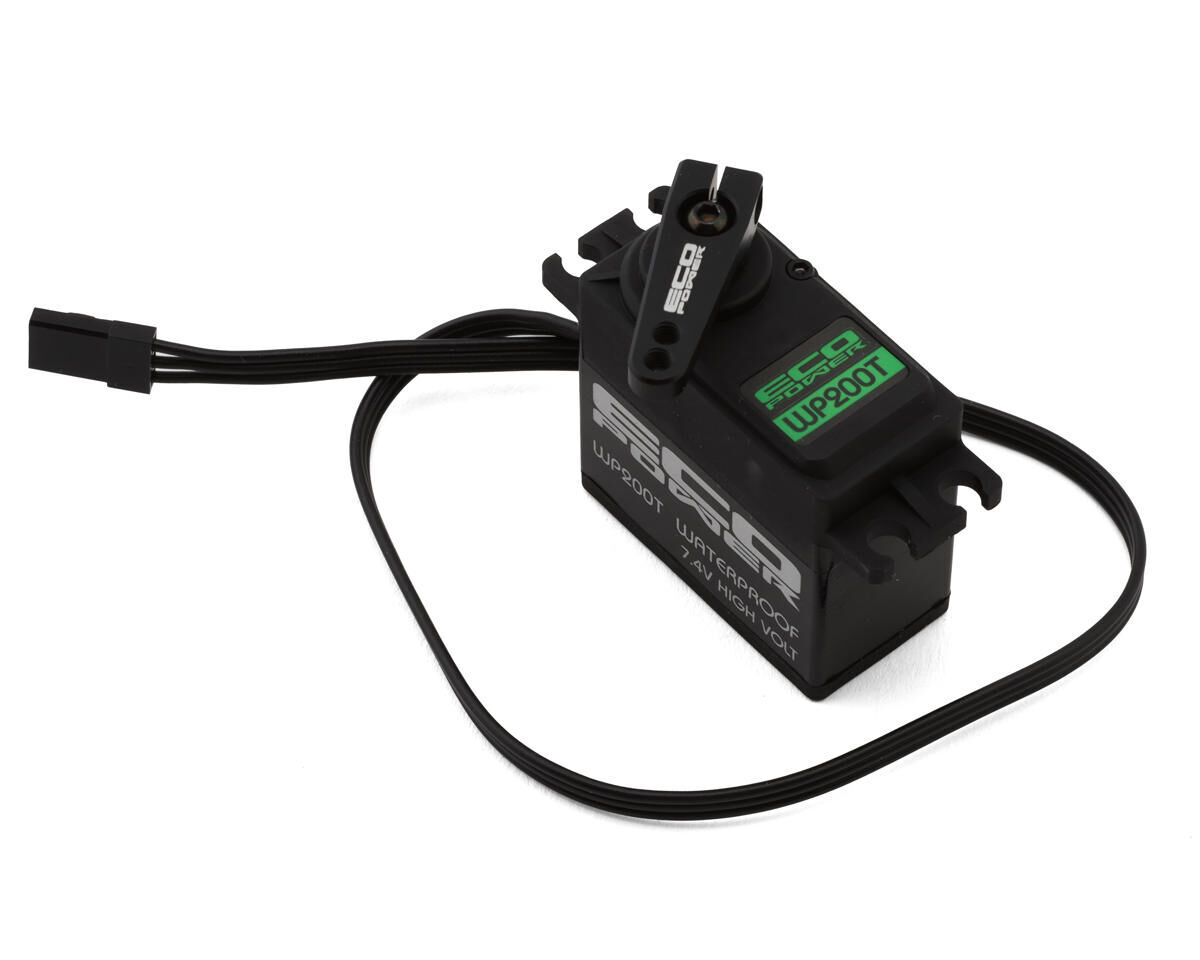

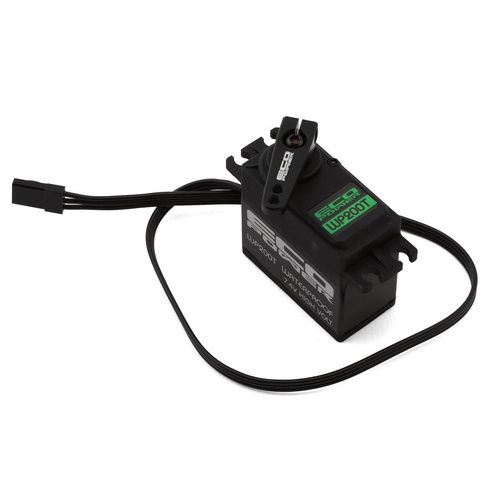

EcoPower WP200T Waterproof High Torque Metal Gear Brushless Servo

Description
Specifications

EcoPower WP200T High Torque Bashing Servo

The EcoPower WP200T Brushless Waterproof "High Torque" Metal Gear Digital Servo is a great choice if you are looking for a waterproof, high voltage upgrade. The WP200T makes 467 oz-in of torque and .11 transit speed at 6.0V. But when you crank the voltage up to 8.4V, the WP200T delivers 578 oz-in and .09 speed, making it an excellent option for scale crawlers, 1/10 monster trucks, 1/10 2WD and 4WD buggies. Plus, its a great option for boats, and other surface applications that can benefit from a high torque, high voltage, waterproof servo.

About the EcoPower WP200T:

Waterproof

The EcoPower WP200T servo features a durable waterproof design, rated for submersion up to 1 meter, making it ideal for harsh conditions and wet environments. Its waterproof casing guarantees reliable performance even when faced with mud, water, or debris, effectively protecting the internal electronics from moisture damage. This makes it an excellent choice for outdoor bashing, rock crawling, or any application where weather resistance and durability are essential.

Power & Gears

The servo is equipped with a high-performance brushless motor and durable steel gears, ensuring maximum efficiency and longevity. The brushless motor provides smoother operation and higher torque, with less heat generation and longer lifespan compared to traditional motors. Additionally, the steel gears offer exceptional durability, resisting wear and maintaining precise performance even under the high-stress demands of competitive racing environments.

Application

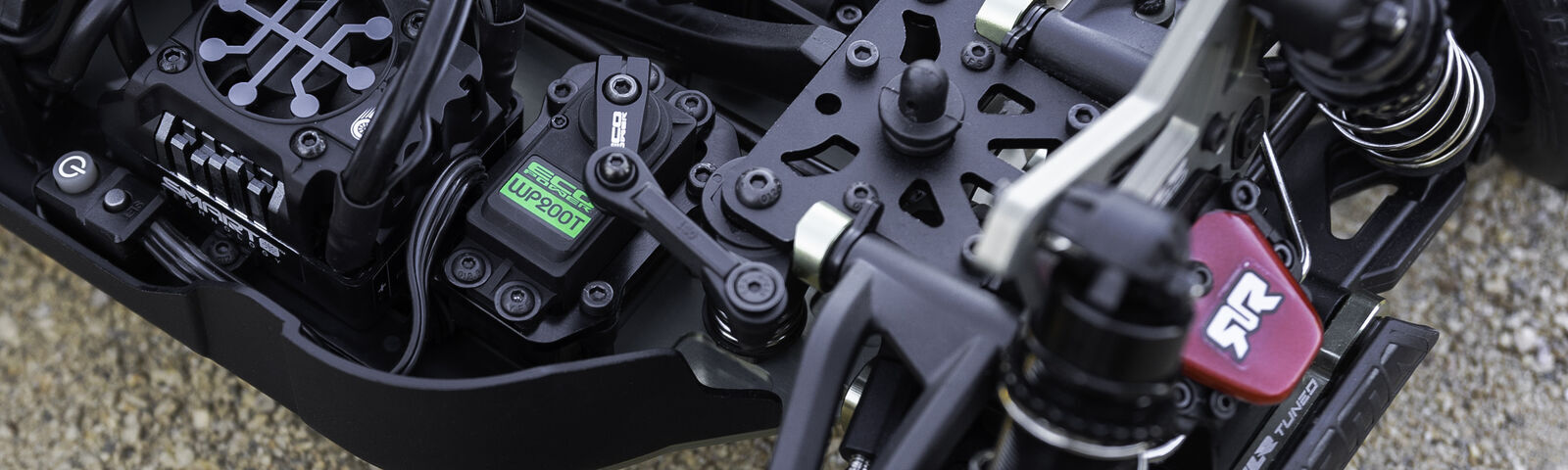

The Servo is an excellent choice for 1/10, 1/8 bashers, and rock crawlers, designed to withstand the rigors of intense off-road action. Precision-engineered for high-performance use, it delivers superior control and responsiveness, making it perfect for chassis that require both toughness and reliability. With a durable design that holds up to heavy bashing, this servo ensures consistent performance across a variety of demanding terrains.

Features:

Ideal for a 1/10 & 1/8 Bashing Platforms
Brushless motor
High voltage circuitry
Full steel gears
Aluminum middle black case
Includes:
(1) WP200T Waterproof High Torque Metal Gear Brushless Servo
(1) Aluminum clamping servo horn

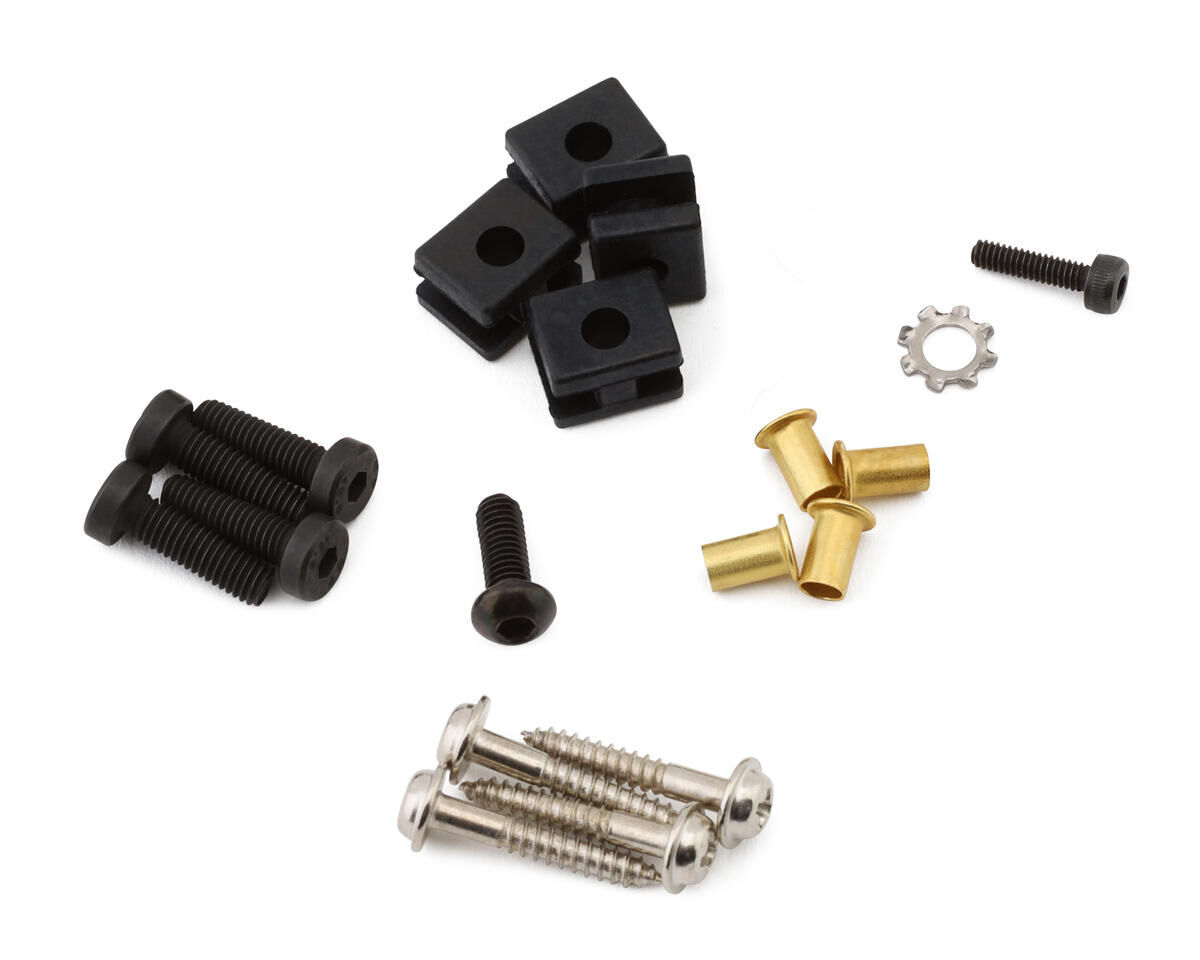

Servo Hardware and grommets

Specifications:

Application	1:10-1/8 Scale
Operating Voltage	6.0V - 8.4V
Operating Temperature	14° to 140° F (-10 to +60° C)
Operating Speed @ 6.0V	0.11/60° sec
Operating Speed @ 8.4V	0.09/60° sec
Dynamic Torque @ 6.0V	467oz-in (34.2 kg-cm)
Dynamic Torque @ 8.4.0V	578oz-in (41.6 kg-cm)
Motor Type	Brushless Digital
Output Shaft	25T
Gears	Steel
Weight	63g
Pulse/Frequency	1520s / 333hz
Dimensions	40.2x20x48.5mm
Length (Bottom to Mount)	27.5mm
