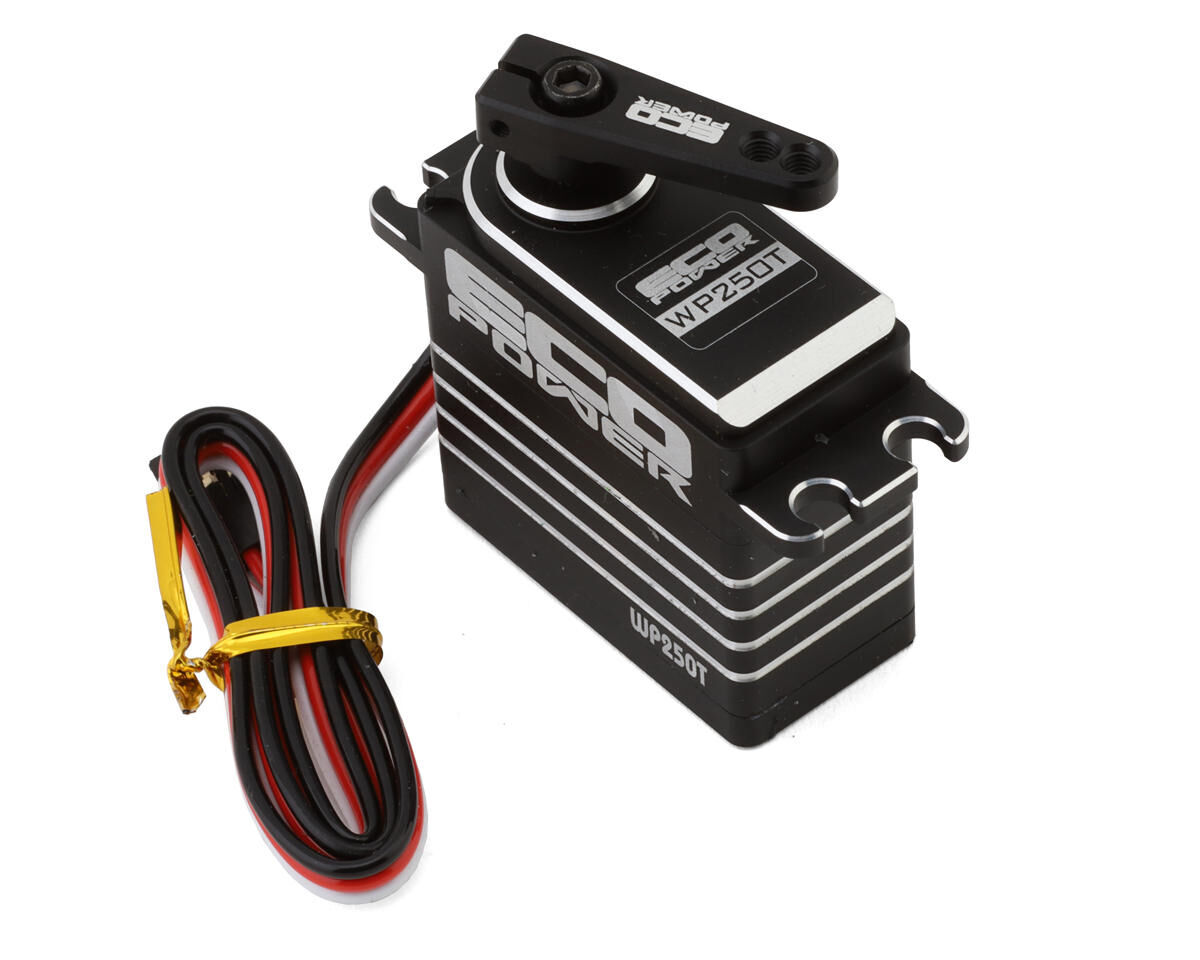

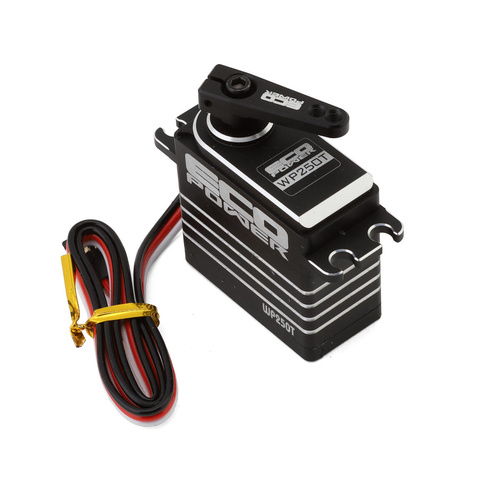

EcoPower WP250T Waterproof MEGA Torque Metal Gear/Metal Case Servo for 1/7 & 1/8 Traxxas™, ARRMA™, Axial™, Losi™ & others

Description
Specifications

for 1/7 & 1/8 Traxxas, ARRMA, Axial, Losi & others

EcoPower WP250T High Torque Waterproof Brushless Servo

EcoPower WP250T Brushless Waterproof High Torque Metal Gear Servo was developed specifically for crawlers, bashers and RTR applications. Heavy 2.2 class rigs, U4 racers, lightweight and heavyweight 1.9 comp builds and ultra-detailed scalers can all benefit from the feature set that the WP250T delivers. Pushing over 681 oz-in of stump-pulling torque and .12 speed at 7.4V, the WP250T will move heavy 2.2 tires with ease, no matter how much weight you put in them.

All this power means nothing without durability. By combining this incredible power with a specialized gasket system, the WP250T is waterproof up to 1-meter and will stand up to anything mother nature can throw at it. A full steel gear train, 25T output shaft and full aluminum machined heat sink case make the WP250T extremely tough. The WP250T delivers the excessive power that crawlers demand - with durability and reliability that make it a must have servo for crawlers that expect the most from their rigs.

The EcoPower WP250T High-Torque Brushless Waterproof Servo

Features:

Ideal for any 1.9 to 2.2 Crawlers and 1/10 or 1/8 Off-Road
Waterproof up to 1 meter
574 oz-in of torque @ 6.0V, and .14 transit speed
681 oz-in of torque @ 7.4V, and .12 transit speed
758 oz-in of torque @ 8.4V, and .10 transit speed
Brushless motor
High voltage circuitry
Full steel gears for maximum durability and reliability
Full aluminum black anodized heat sink case for enhanced heat dissipation
Dual ball bearings
280mm servo lead

Specifications:

Servo Model	WP250T
Recommended Application	1/10 to 1/8 Scale Crawler & Bashers
Operating Voltage	4.8V - 8.4V
Operating Temperature	14° to 140° F (-10 to +60° C)
Operating Speed @ 6.0V	0.14/60° sec
Operating Speed @ 7.4V	0.12/60° sec
Operating Speed @ 8.4V	0.10/60° sec
Dynamic Torque @ 6.0V	574 oz-in (41.3 kg-cm)
Dynamic Torque @ 7.4V	681 oz-in (49.0 kg-cm)
Dynamic Torque @ 8.4V	758 oz-in (54.5 kg-cm)
Motor Type	Brushless Digital
Output Shaft	25 Tooth
Gears	Steel
Weight	82g
Pulse/Frequency	1520 / 330hz
Dimensions	40.2x20x44.5mm
Length (Bottom to Mount)	27.5mm
