The FS-iBT01 is a temperature sensor adapted to the FOSS AFHDS 3 enhanced receiver using the i-BUS2 protocol sensor.

It is compact, easy to install, waterproof to PPX6 level, real time temperature data transmission, measuring temperature

The sensor can measure temperatures down to 0.1°C and is suitable for use with a wide range of models.





Product Model: FS-iBT01



The FS-iBT01 can be used with i-BUS2 receivers (e.g. FTr8B, FTr12B, INr6-HS, etc.).

INr6-HS and other Fusions AFHDS 3 enhanced receivers)



●Compatible with: cars, boats, helicopters, fixed-wing, fighting robots, construction vehicles, etc.

●Protocol type: i-BUS2

●Measurement accuracy: 0.1 "C

●Measurement range: -20°C ~ +200°C

●Input power: 3.5~9V/DC

Operating current: 20mA (5 V)

●On-line update: not supported

●Waterproof rating: PPX6

●Exterior dimensions: 295mm (length)

●Weight: 4.0g

Temperature range: -20°C ~ +85°C

●Humidity range: 0~95%

Safety approvals: CE, FCC

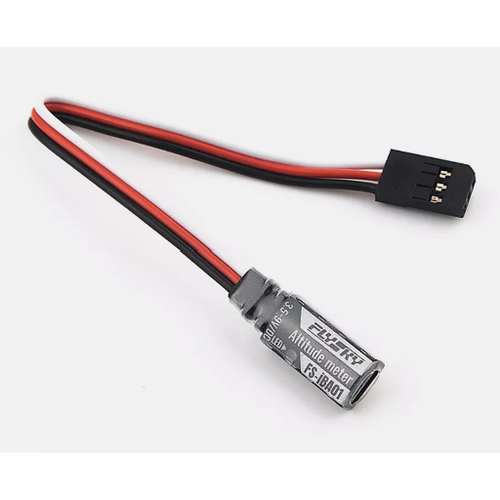

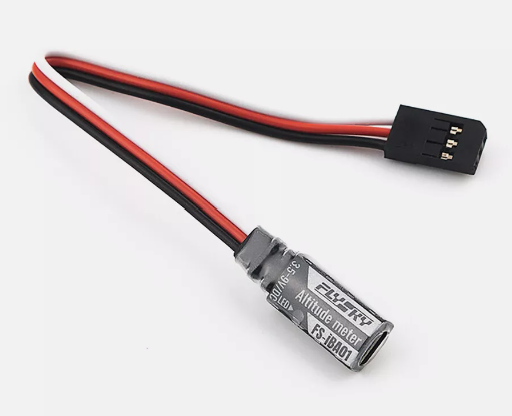

(FS-iBA01)

SKU FS-iBA01
Brand FLYSKY
