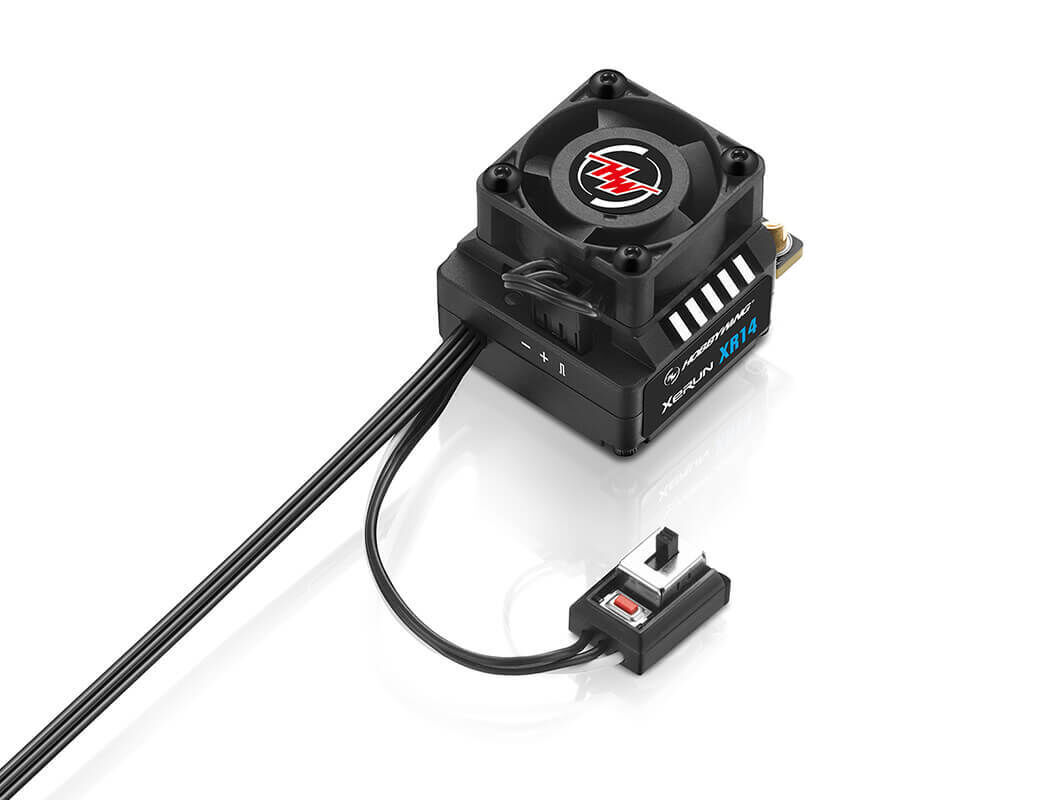

HOBBYWING XERUN XR14 SPEED CONTROL (FOR 1/14TH SCALE)



Specifications

Scale: 1/14th?1/12th? 1/10th
Brushed/Brushless: Brushless
Sensored/Sensorless: Sensored
Waterproof: NO
Cont./Peak Current: 70A/300A
Input Voltage: 2S Lipo
BEC Output: Switch Mode 6V/7.4V @4A
Input Wires: Black-10AWG-200mm*1 Black-14AWG-175mm*2
Output Wires: Black-14AWG-175mm*3
Input Connectors: No
Output Connectors: No
ESC Programing via SET Button on ESC: Not Supported
ESC Programing via LED Program Box: Not Supported
ESC Programing via LCD G2 Program Box: Supported
ESC Programing via LCD PRO: Supported
ESC Programing via OTA Programmer: Supported
ESC Programing via Program Port: Shared with Fan port
Data Recording Extreme value: Supported
Real-time Data: Supported
Historical data (Graph): Supported
Firmware Upgrade: Supported
Size: 35.2*31.3*28.5mm
Weight: 66g (Included wires)
Motors Supported: Sensored/Sensorless Brushless Motors
Vehicles: 1/14 Scale Racing, 1/12&1/10 Light load vehicles with zero-timing (blinky) mode
KV Rating/T Count: XERUN 2848



(HW30112622)

SKU HW30112622
Brand HOBBYWING
