Product Name
Product Number
Type Brushed/Brushless

High Voltage/Regular
Specifications Cont./Peak Current

Input Voltage

BEC Output
Wires & Connectors Input Wires

Output Wires

Input Connectors

Output Connecotors
ESC Programing via Transmitter

LED Program Card

LED Program Box

LCD Program Box

OTA Programmer

Program Port
Firmware Firmware Upgrade
Telemetry Function



Size & Weight Size

Weight
Application scope
Product Name   Platinum HV 180A SBEC V5
Product Number   30209103
Type Brushed/Brushless

High Voltage/Regular
BL

High Voltage
Specifications Cont./Peak Current

Input Voltage

BEC Output
180A/260A

6-14S LiPo

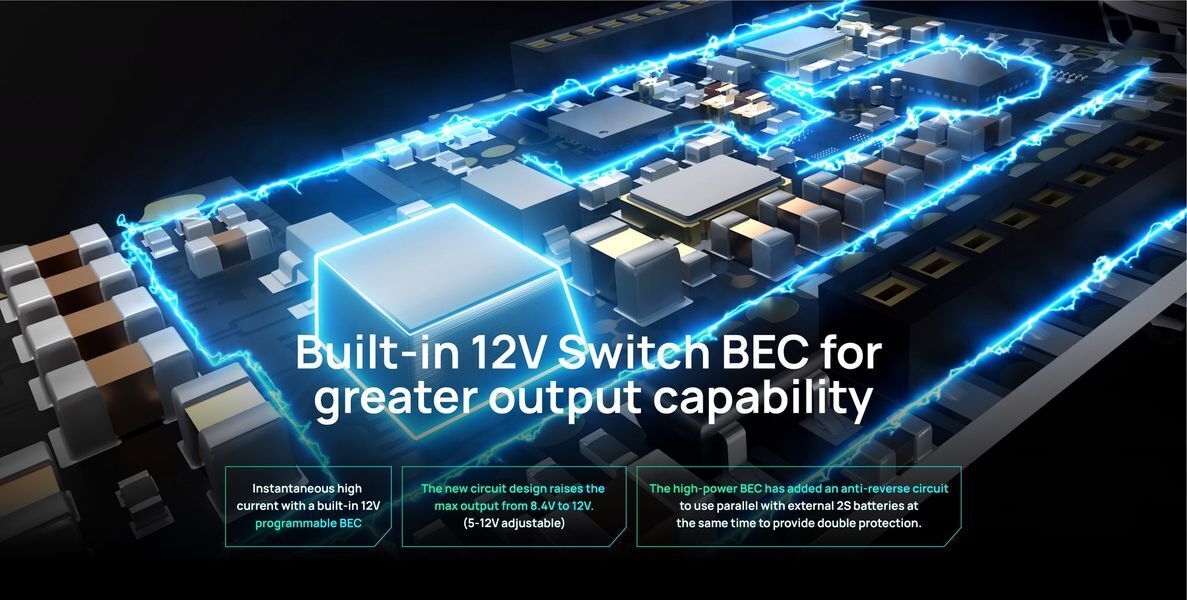

Switch Mode:5-12V & Cont. 10A,Peak 30A
Wires & Connectors Input Wires

Output Wires

Input Connectors

Output Connecotors
Red-10AWG-255mm*1/Black-10AWG-255mm*1

Black-10AWG-150mm*3

No

No
ESC Programing via Transmitter

LED Program Card

LED Program Box

LCD Program Box

OTA Programmer

Program Port
Not Support

Not Support

Not Support

Supported

Supported

Separate Program Port
Firmware Firmware Upgrade Supported
Telemetry Function



Mikado VBar;Futaba S.Bus2;etc.
Size & Weight Size

Weight
100.6*45.5*26.1mm (without fan)

250.6g (without fan)
Application scope   550-700 class electric helicopter (main rotor length 550-700mm),or fixed-wing

(HW30209103)

SKU HW30209103
Barcode # 6938994423250
Brand HOBBYWING
