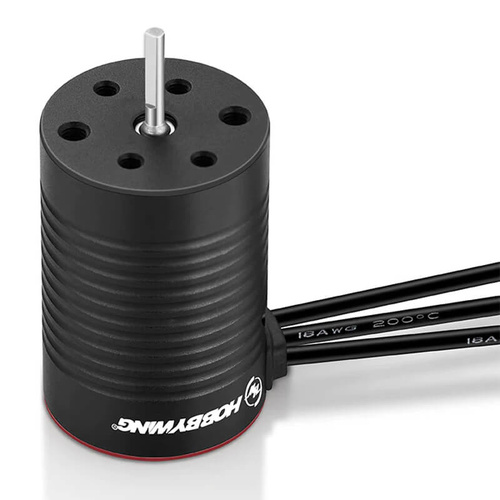

HOBBYWING QUICRUN 2435-4500KV G3 MOTOR 1/16 & 1/18 (2.0MM SHAFT)



The QuicRun 2435 4500KV G3 has been upgraded to a 4-pole rotor which has improved the torque and power output.

FEATURES

  • High Efficiency means more POWER while keeping TEMPS low!
  • 4 pole rotor design for increased torque, and more power
  • Compared with the previous generation of motors, the output power and efficiency are increased by more than 4%, and the motor temperature is effectively reduced under the same load.
  • 0.2mm thick silicon steel laminations, high strength explosion-proof rotor, high-temperature resistant coil and high-precision and high-quality bearings make the motor super durable.

SPECIFICATIONS

Scale: 1/16th & 1/18th
Brushed/Brushless: Brushless
Sensored/Sensorless: Sensorless
Pole Count: 4
KV Rating: 4500
LiPo Cells: 2S
No-load Current(A): 2.1A
O.D.(mm): 24.0 (0.94in)
Length (mm): 36.0 (1.42in)
Shaft Diameter (mm): 2.0 (0.08in)
Shaft Length (mm): 12.0 (0.47in)
Weight: 61.2g
Timing: Fixed

(HW30404004)

SKU HW30404004
Brand HOBBYWING
