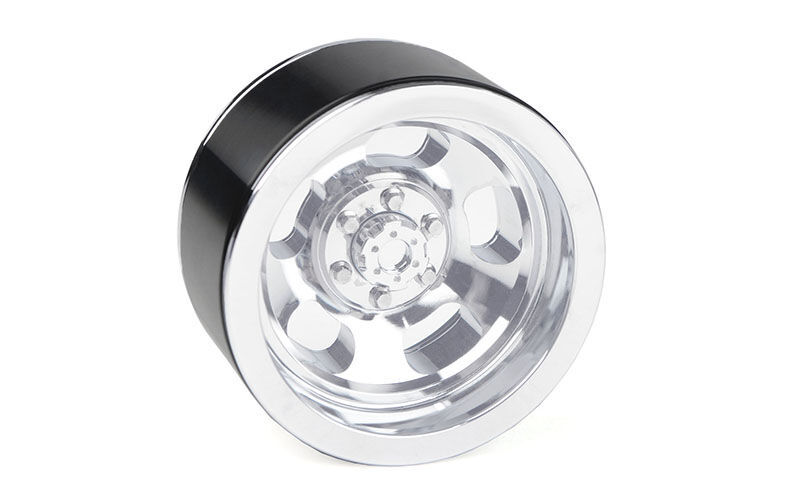

RC4WD Deep Dish Slot Mag 2.2" Beadlock Wheels





Specifications:

  • CNC Machined
  • Billet Aluminum
  • Chrome Plated Finish
  • Fits Standard 12mm Hex
  • Wheel Size: 2.2"
  • OD: 2.48in / 63.0mm
  • Width: 1.26in / 32.0mm
  • Center Hole OD: 0.20in / 5.2mm
  • Negative Offset: 0.47in / 12.0mm
  • Each Wheel Weighs: 4.78oz / 135.6g

















Shown installed with RC4WD BFGoodrich Mud Terrain T/A KM3 2.2" Scale Tires (Z-T0037) for example (Not Include)





Shown installed on Traxxas TRX-4 '79 Bronco Ranger XLT with RC4WD BFGoodrich Mud Terrain T/A KM3 2.2" Scale Tires (Z-T0037) for example (Not Included)







Click image below to enlarge photo.





What's Included:

  • 4x RC4WD Deep Dish Slot Mag 2.2" Beadlock Wheels
  • 4x Covers with Nylock Nuts M4 (Silver) (Z-S1265)
  • 1x Miniature Scale Hex Bolt Tool for M2.5 & M3 Scale Bolts (2.5mm Hex) (Z-S0635)
  • 4x M3 Driveshaft Screw Pins (Z-S0804)
  • 4x RC4WD 12mm Wheel Hex Conversion for Traxxas TRX-4 (Z-S1844)
  • 1x Scale Front Locking Hub Installation Tool (Z-S0343)



Replacement Hardware:

  • Nylock Nuts M4 (Silver) (Z-S1265)
  • RC4WD Miniature Scale Hex Bolts (M2.5 X 12mm) (Silver) (Z-S1598)



Notes:

  • Installing on Traxxas TRX-4 trucks requires the RC4WD 12mm Wheel Hex Conversion for Traxxas TRX-4 (Z-S1844)
  • Due to many different methods to design tires and wheels, we have no control over other manufacturers products, so we can only tell you that RC4WD tires and wheels work together. In some cases, our wheels and tires will work with other brand wheels and tires, but we can not guarantee the outcome.

(Z-W0077)
