RC4WD Superlift Superide 80mm Scale Shock Absorbers


http://www.killercase.com/icon/Corporate_Logo_MC.jpg

This is the all new Licensed Scale Shock to hit the market. Licensed from Superlift Suspension Systems. These new shocks feature a complete new design from the ground up and are built and ready to handle the rocks. Your scale build will never be the same once you bolt up a set of these awesome looking shocks. Available only from RC4WD and our Dealers.

Specifications:

  • CNC Machined
  • Billet Aluminum
  • Smooth White Painted Finish
  • Internal Spring Design

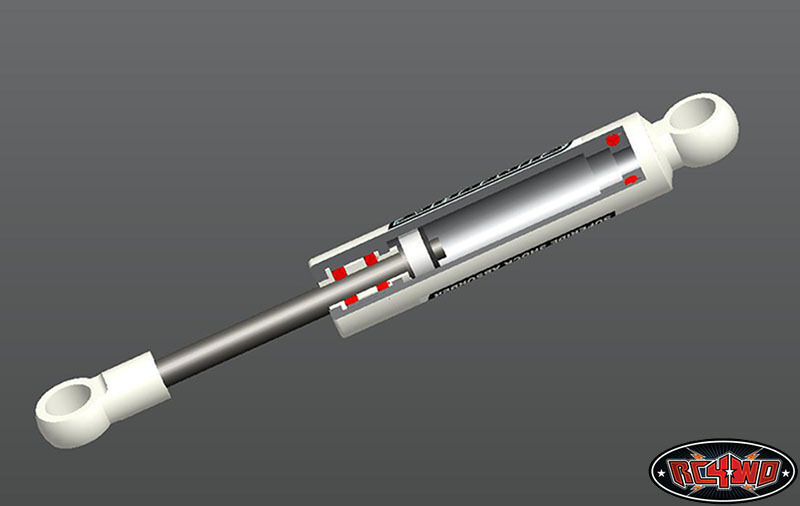

  • New Internal Design
  • Included Superlift Decal
  • Uses Shock Boots (details below)

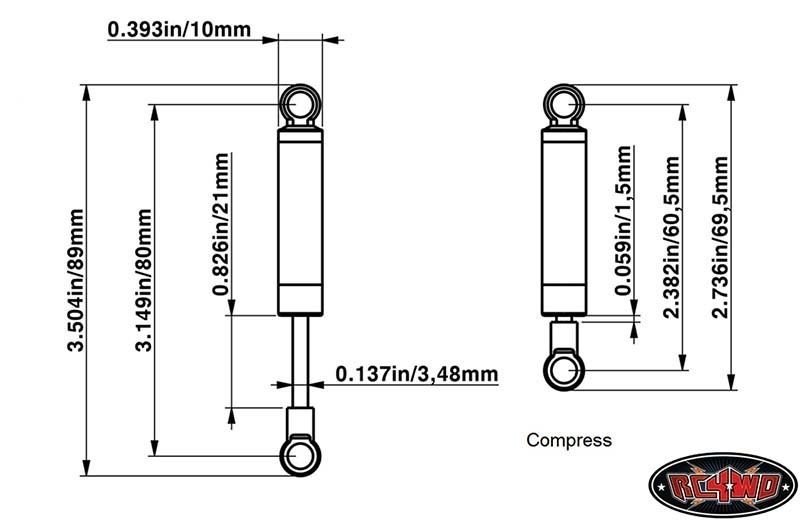

  • Hole to hole (Compressed): 2.38in / 60.5mm
  • Hole to hole (Uncompressed): 3.14in / 80mm
  • Overall Length: 3.5in / 89mm
  • Travel Length: 0.76in / 19.5mm
  • Shock body: 0.39in / 10mm
  • Shaft Diameter: 0.137in / 3.48mm
  • Decal Size (Length): 0.98in / 25mm
  • Decal Size (Width): 0.31in / 8mm
  • Each Weight: 0.38oz / 11g

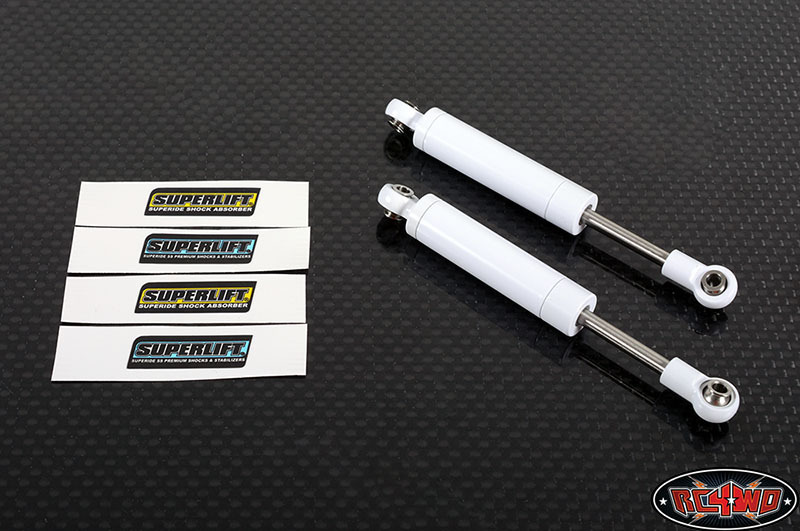

What's Included:

  • 2x RC4WD Superlift Superide 80mm Scale Shock Absorbers
  • 2x Superlift Superide SS Decal 8mm x 25mm (Blue)
  • 2x Superlift Superide Decal 8mm x 25mm (Yellow)
  • 1x Superlift Decal Sheet

Optional Parts:

  • Internal Springs for ARB and Superlift 80mm Shocks (Z-S1179)



Replacement Parts:

  • Rebuild Kit for Scale King, ARB & Superlift Shocks (Z-S0788)

Notes:

  • For Black Rubber Boot Z-S0891
  • For Red Rubber Boot Z-S0948
  • For Yellow Rubber Boot Z-S0962
  • For Blue Rubber Boot Z-S0961
  • Use blue (medium) thread lock to the bottom shock shaft rod end before installing onto your vehicle to help keep it in place.

Other Sizes:

  • RC4WD Superlift Superide 90mm Scale Shock Absorbers Z-D0015
  • RC4WD Superlift Superide 100mm Scale Shock Absorbers Z-D0032

Superlift is a registered trademark of the Superlift Suspension Systems. The Superlift logo is property of Superlift Suspension Systems and used under license to RC4WD.

(Z-D0012)

SKU Z-D0012
Barcode # 610373636890
Brand RC 4WD
