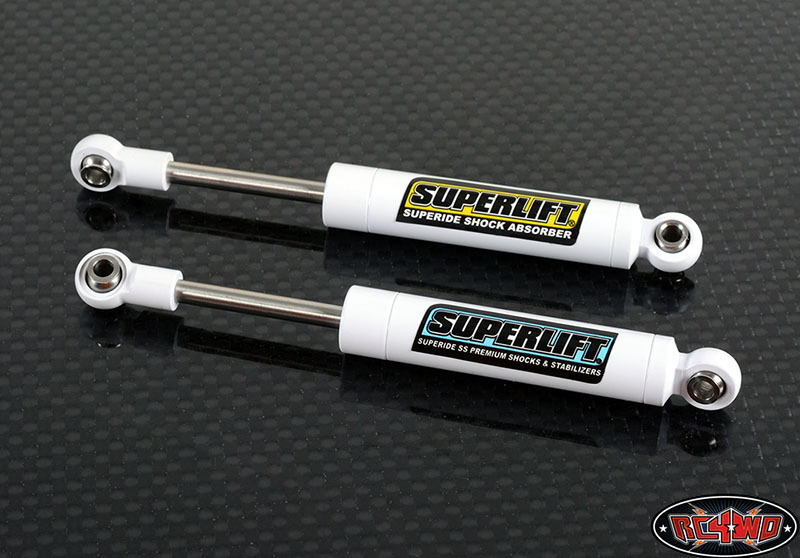

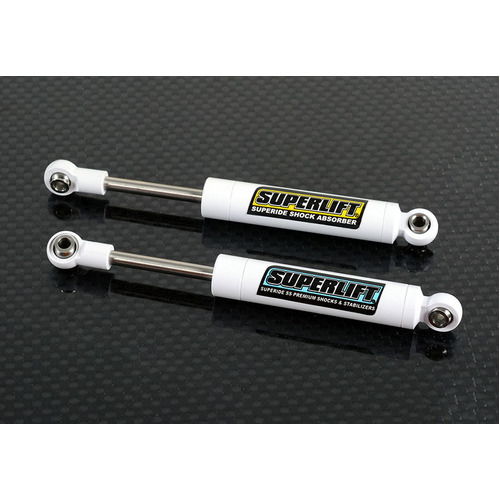

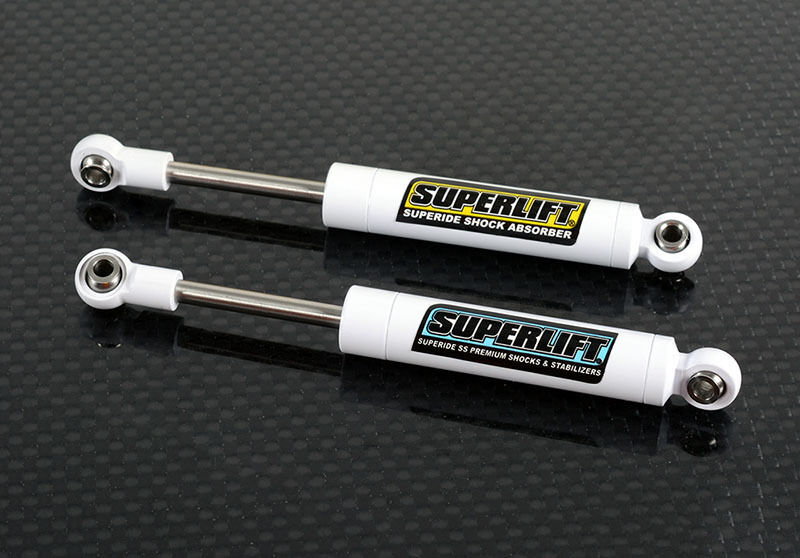

RC4WD Superlift Superide 90mm Scale Shock Absorbers


http://www.killercase.com/icon/Corporate_Logo_MC.jpg

This is the all new Licensed Scale Shock to hit the market. Licensed from Superlift Suspension Systems. These new shocks feature a complete new design from the ground up and are built and ready to handle the rocks. Your scale build will never be the same once you bolt up a set of these awesome looking shocks. Available only from RC4WD and our Dealers.


http://www.beadlok.com/product/images/Auua01/Z-D0015-1.jpg

Specifications:

  • CNC Machined
  • Billet Aluminum
  • Smooth White Painted Finish
  • Internal Spring Design
  • New Internal Design
  • Included Superlift Decal
  • Uses Shock Boots (details below)
  • Hole to Hole (Compressed): 2.63in / 67 mm
  • Hole to Hole (Uncompressed): 3.54in / 90mm
  • Overall Length: 3.89in / 99mm
  • Travel Length: 1.02n / 26mm
  • Shock Body: 0.39in / 10mm
  • Shaft Diameter: 0.13in / 3.4mm
  • Decal Size (Length): 1.14in / 29mm
  • Decal Size (Width): 0.33in / 8.6mm
  • Each Weight: 0.45oz / 13g

http://www.beadlok.com/product/images/Auua01/Z-D0015-2.jpg


Shown installed on the Trail Finder 2 Truck Kit w/Mojave II Body Set (Z-K0049) for example (Not Included)


http://www.beadlok.com/product/images/Auua01/Z-D0015-3.jpg

http://www.beadlok.com/product/images/Auua01/Z-D0015-4.jpg

http://www.beadlok.com/product/images/Auua01/Z-D0015-5.jpg


http://www.beadlok.com/product/images/Auua01/Z-D0015-8.jpg

http://www.beadlok.com/product/images/Auua01/Z-D0015-9.jpg



Different Shocks boots shown installed on 90mm Superlift shock for example (Not Included)


http://www.beadlok.com/product/images/DF/2.jpg

What's Included:

  • 2x RC4WD Superlift Superide 90mm Scale Shock Absorbers
  • 2x Superlift Superide SS Decal 8.6mm x 29mm (Blue)
  • 2x Superlift Superide Decal 8.6mm x 29mm (Yellow)
  • 1x Superlift Decal Sheet

Optional Parts:

  • Internal Springs for ARB and Superlift 90mm Shocks (Z-S1181)

Replacement Parts:

  • Rebuild Kit for Scale King, ARB & Superlift Shocks (Z-S0788)

Notes:

  • Fits Gmade Sawback
  • For Black Rubber Boot Z-S0891
  • For Red Rubber Boot Z-S0948
  • For Yellow Rubber Boot Z-S0962
  • For Blue Rubber Boot Z-S0961

Other Sizes:

  • RC4WD Superlift Superide 80mm Scale Shock Absorbers Z-D0012
  • RC4WD Superlift Superide 100mm Scale Shock Absorbers Z-D0032

Superlift is a registered trademark of the Superlift Suspension Systems. The Superlift logo is property of Superlift Suspension Systems.

(Z-D0015)

SKU Z-D0015
Barcode # 610373641115
Brand RC 4WD
