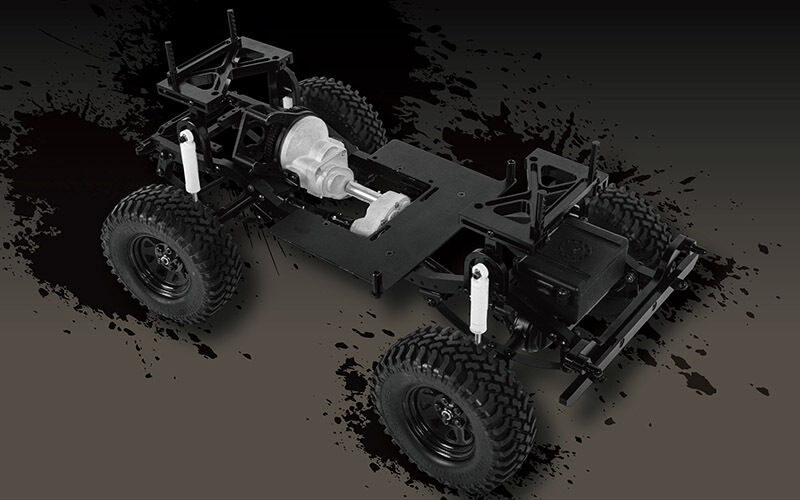

RC4WD Trail Finder 2 Truck Kit "SWB"

Description
Specifications

(Z-K0045)

The TF2 SWB has both detailed styling and aggressive performance.
You will find a balance of capability and performance built into every TF2.
Performance of the TF2 is smooth and with its R3 single speed transmission, 4WD drivetrain, bullet-proof transfer case and quality metal components throughout.
The TF2 is truly a work of art in both appearance and performance.
Every TF2 SWB is compatible with a full range of option parts designed to enhance the performance
and add to the scale look of the only true scale 1/10 offroad truck... The Trailfinder 2 SWB.

Realistic Billet Aluminum Ladder Frame Chassis "SWB"
R3 Single Speed Transmission
Center Mounted Realistic 4x4 Transfer Case
Yota II Ultimate Scale Cast Axle
True to Scale Leaf Spring Suspension
5 Lug Wagon 1.9" Steel Stamped Beadlock Wheels (Black)
Mud Thrashers 1.9" Scale Tires
Realistic Bumpers and Skid Plate
Chassis Mounted Steering Servo
RC4WD Scale Shock Absorbers
Plastic Rod Ends
Full Ball Bearings

Shown with Tamiya Jeep Body for example (not included) TAM9335171

All New Hammer Transfer Case
Ratio - 1.47:1
Gears - Wide 32P steel gears

All New R3 Single Speed Transmission
Ratio: 1.78:1
Pinion/spur 14/64 = 4.57:1

Cast Yota 2 Axles
Ratio: 15/40 = 2.67:1
Width at hex: 176.5mm

Trailfinder 2 SWB Chassis
Features - Billet aluminum construction Adjustable shock hoops

Driveshafts
RC4WD Punisher Metal Driveshafts
Heavy duty steel construction

Wheels
Type: 1.9 5 lug Wagon Wheels
Hub: Pin type
Width: 25mm
Back spacing: 11mm

TF2 SWB Dimensions
Wheels Base: 9.9in / 242mm
Width: 8.3in / 211mm
Height: 5.55in / 141mm
Ground Clearance: 2.3in / 58.5mm
Overall Length: 15.31in / 389mm
Weight: 62.1oz / 1.76kg

http://www.beadlok.com/product/images/ASD/Z-K0045-%2013.jpg

http://www.beadlok.com/product/images/ASD/Z-K0045-6DriveTrain.jpg

DRIVETRAIN

The TF2 includes the Hammer Transfer Case. Packed with detail, the case features a cast metal exterior and the same new 32P widened gears for durability.

The most scale accurate axles on the market, the RC4WD Cast Yota II axles feature innovative round knuckles, new lower mounting points and compact offset pumpkins.

The R3 Single Speed Transmission comes with a cast aluminum case and new wider gears to allow for more abuse along with a Delrin spur with slipper clutch.

Drawing on the success of the RC4WD MOA gear sets, the TF2 drivetrain has the most durable gears RC4WD has to offer so the TF2 will stay on the trail, day after day.

The Metal Driveshafts for the TF2 are an all new design featuring bulletproof steel universals and a new high quality plastic shaft for great driveline angles and durability on the trail.

http://www.beadlok.com/product/images/ASD/Z-K0045-%2014.jpg

http://www.beadlok.com/product/images/ASD/Z-K0045-%208.jpg

http://www.beadlok.com/product/images/ASD/Z-K0045-9Suspension-print.jpg

Suspensions

The TF2 includes a set of RC4WD Ultimate Scale Shocks. Designed for ultimate scale looks and ultimate performance. The shocks are machined from billet aluminum and internally sprung.

The TF2 includes a set of RC4WD Black Stamped Steel 1.9 Internal Beadlock Wagon Wheels. Super tough black painted finish, aluminum internal ring and popular 5 lug design.

The TF2 Chassis is a machined billet aluminum ladder frame design with leaf springs, scale shock hoops, chassis servo mounts and hard body mounts. 4-link conversion available

Every TF2 needs a tough set or rock grabbing tires and the included Mud Thrashers in X3 Compound deliver the traction as well as perfect scale looks in just the right size.

http://www.beadlok.com/product/images/ASD/Z-K0045-7.jpg

The 4 Link Conversion kit can be used to replace the stock rear leaf spring setup with a more advanced 4 link style setup. Z-S1053 (Not Included)

What's Included:

1x RC4WD Trail Finder 2 SWB

Notes:

While some components may come assembled, it may be in your best interests to check the products to ensure all hardware is tight. In some cases you may want to apply threadlock to some of the hardware that is already installed.
Use good quality hex drivers to avoid stripping screw heads.
Use thread lock when putting metal screws into metal parts.
Steps marked with an asterisk (*) require thread lock.
Use thread lock sparingly.
Do not over tighten screws otherwise you may strip the thread.

Required to Complete:

Truck Kit
