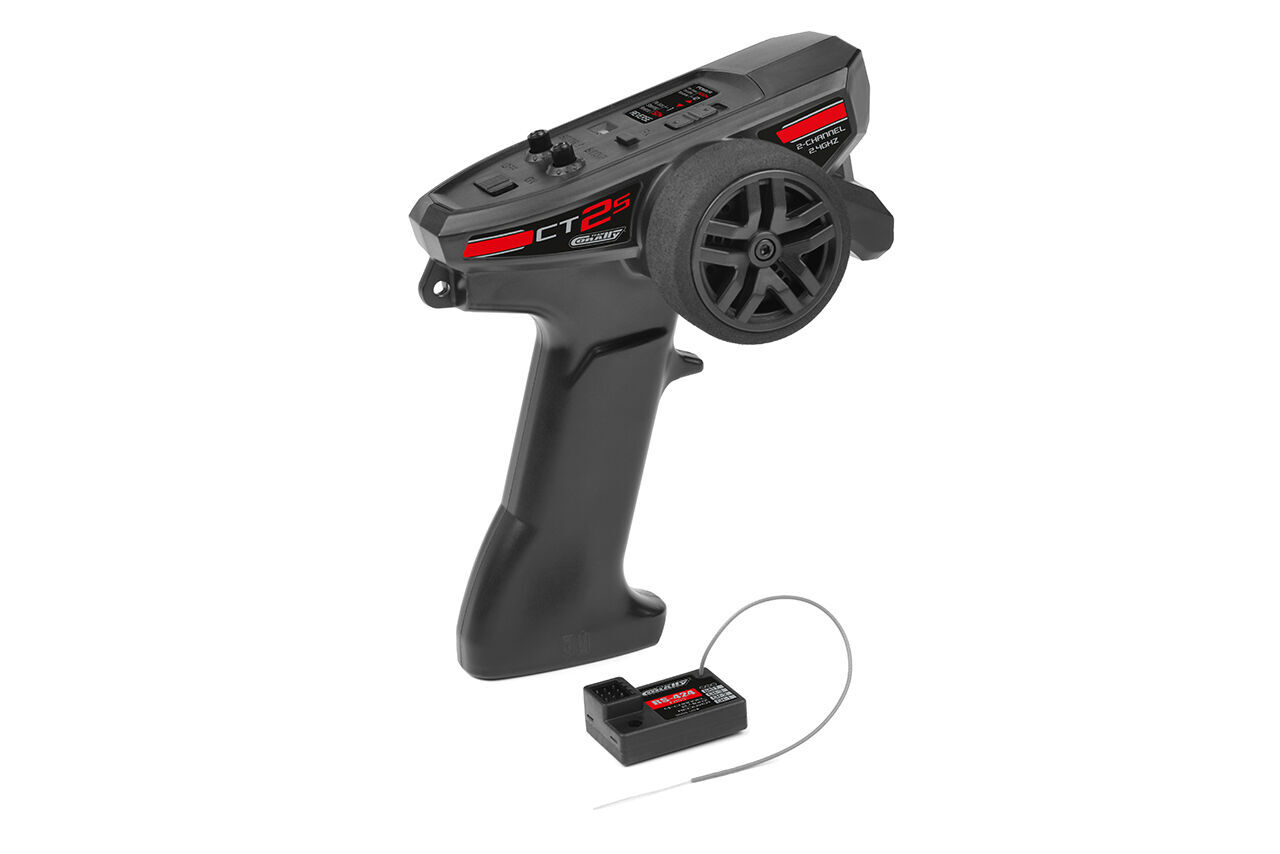

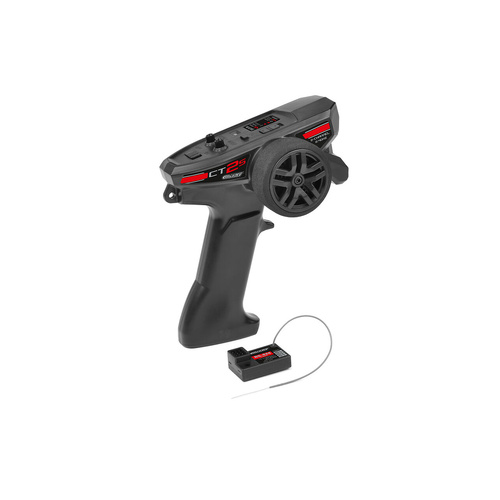

Team Corally - CT2S 2-Channel 2.4GHZ Digital Radio Control System

Specification

• 2CH Transmitter with 3-channel receiver.

• The device has an integrated 2.4GHz antenna.

• Steering DUAL RATE (D/R).

• Steering Trim.

• Steering and throttle Reverse

• 50% of 100% throttle power function

Transmitter CT2S

Model Type: . . . . . . . . . . . . . . . . . . . Car/Boat

RF power: . . . . . . . . . . . . . . . . . . . . <20dBm

Modulation: . . . . . . . . . . . . . . . . . . . . . .GFSK

Sensitivity: . . . . . . . . . . . . . . . . . . . . . .  1024

Low Voltage Warning: . . . . . . . . . . . . . . <4,5V

Power: . . . . . . . . . . . . . . . 6 VDC (1.5V AA x4)

Range: . . . . . . . . . . . . . . . . . . . . . . . . >200m

Weight: . . . . . . . . . . . . . . . . . . . . . . . . . . 250g

Dimensions: . . . . . . . . . . . . . 160x150x90mm

Certificate: . . . . . . . . . . . . . . . . . . . . CE - FCC

Receiver RS-424

Channels: . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Model type: . . . . . . . . . . . . . . . . . . . car/boat

Frequency band: . . . . . . . . . . . . . . . . 2.4 GHz

Modulation: . . . . . . . . . . . . . . . . . . . . . .GFSK

Sensitivit y: . . . . . . . . . . . . . . . . . . . . . . 1024

RF receiver sensitivity: . . . . . . . . . . -100 dbm

Power: . . . . . . . . . . . . . . . . . . . . .4.5–7.2 vdc

Weight: . . . . . . . . . . . . . . . . . . . . . . . . . . 7 g

ANT length: . . . . . . . . . . . . . . . . . . . 106 mm

Dimensions: . . . . . . . . . . . . . . . 38x24x14mm

Certificate: . . . . . . . . . . . . . . . . . . . . CE - FCC
