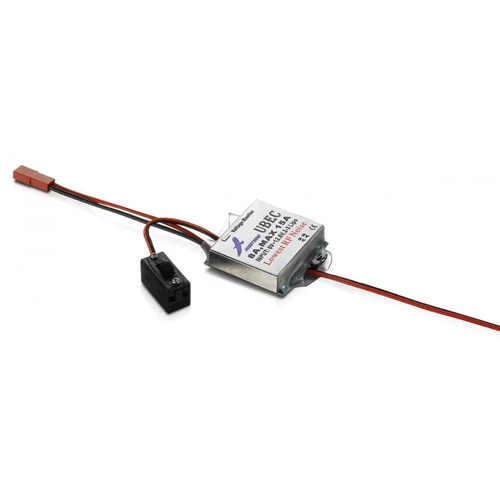

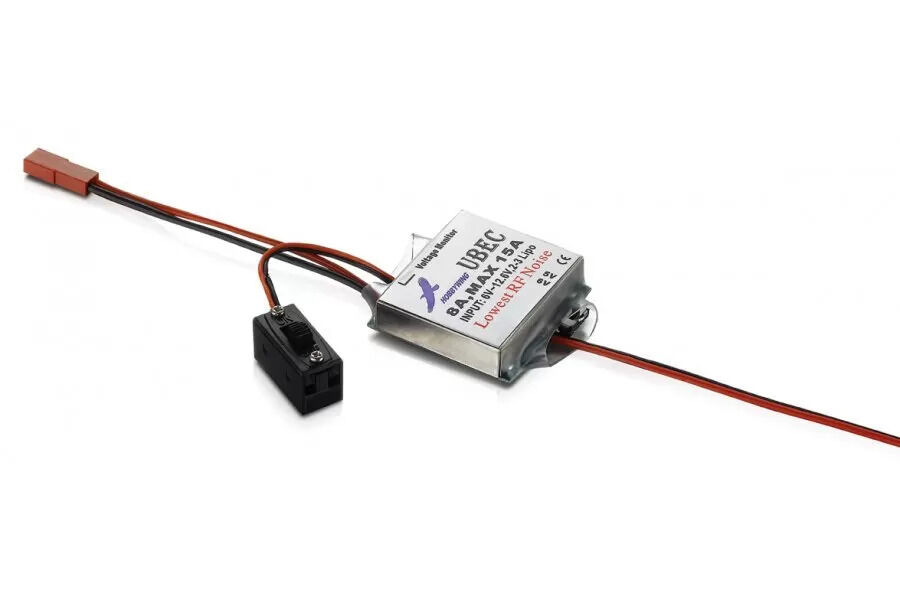

This UBEC is an external switching mode DC-DC regulator; it draws DC voltage from 2-3S LiPo battery, drops it to a voltage level that is suitable for your receivers and other electronic devices, and keeps providing the stable current output of up to 8Amp. As the UBEC has such a powerful output capability, so it’s particularly applicable for 30+ Class nitro helicopters and large fixed-wing aircraft.



Part Number

86010030

Specifications

Output Voltage/Current (Cont./Peak): 5V@8A /15A or 6V@8A/15A  (adjust via control switch)
Quiescent Current:60mA

Input Voltage:6-12.6V (2-3S LiPo)

Size:42x39x9mm (LxWxH)
Weight:36g

(HW86010030)

SKU HW86010030
Barcode # 6938994400121
Brand HOBBYWING
