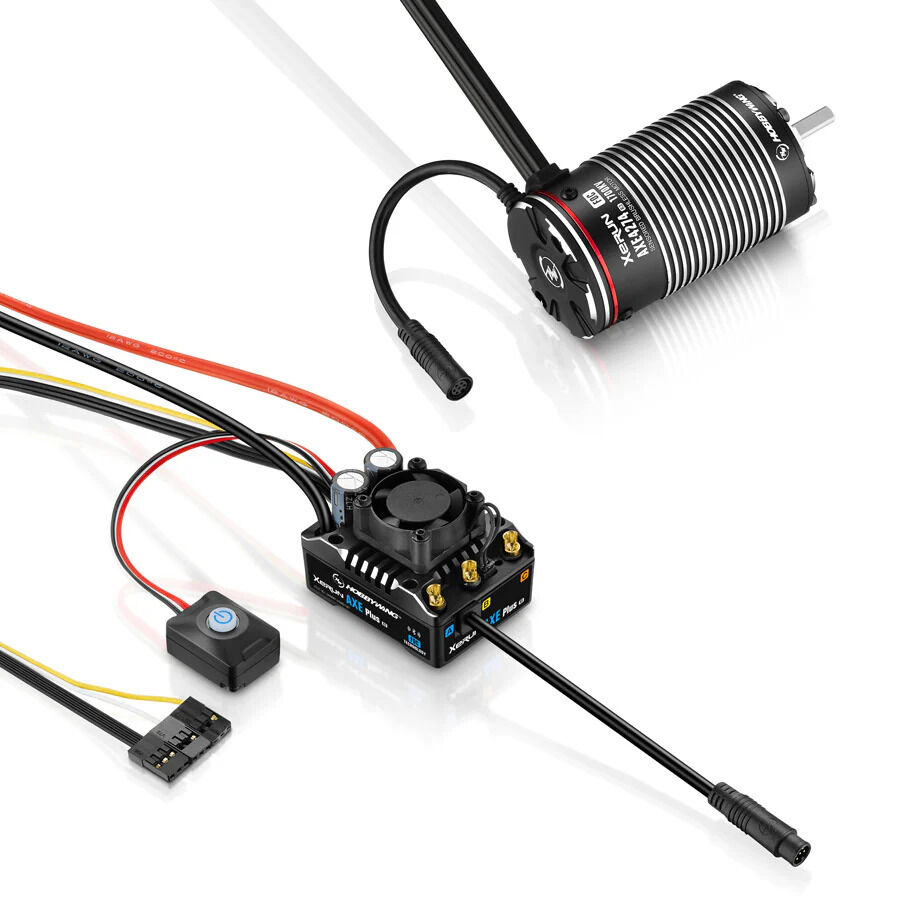

HOBBYWING XERUN AXE PLUS R3 & AXE 4274SD 2000KV R3 MOTOR



Combo XeRun AXE Plus R3 & AXE 4274SD 2000KV R3 Motor

Step into a realm of unparalleled RC performance with the Hobbywing Combo Xerun AXE Plus R3 & AXE 4274SD 2000KV R3 Motor. This impressive fusion of advanced electronics and powerful motor delivers a level of control and performance that will astonish every RC enthusiast. Whether you're a seasoned racer or simply seeking the ultimate thrill of RC fun, this combo provides everything you need to elevate your RC experience to new heights. With the Xerun AXE Plus R3 ESC for smooth operation and the AXE 4274SD 2000KV R3 Motor for potent acceleration, you're ready for any challenge that comes your way. Get ready to take control and push the boundaries of RC performance with this unbeatable combo.

FEATURES XERUN AXE 4274SD 2000KV

  • The built-in high-precision magnetic encoder sends precise rotor position signals to the ESC
  • Versatile in different scale areas
  • Excellent protection against water and dust according to IP67 standard
  • Use of high quality building materials
  • Optimized for sensitive performance development

SPECIFICATIONS XERUN AXE 4274SD 2000KV

Type: Sensored Brushless FOC
Poles: 4
kV Rating: 2000KV
Cells: 3-6S LiPo
No-Load Current: 4.5A
Outer Diameter: 42.0mm
Length: 74.0mm
Shaft Diameter: 5.0mm
Shaft Length: 18.5mm
Waterproof: Yes
Weight: 415g
Application: 1/8, 1/7, 1/6 Rock Crawler

FEATURES XERUN AXE PLUS R3

  • Stronger performance thanks to FOC (Field-Oriented-Control) technology.
  • Drag brake adjustable up to 200% for unparalleled holding power on slopes.
  • Super BEC with max. 6A and three voltage levels for using different servos.
  • Waterproof and dustproof to IP67 standard.
  • Smart torque delivery and speed control for easy control and constant speed under all loads.
  • Built-in Bluetooth module.
  • Multiple controller protection functions including reverse polarity protection.
  • Only compatible with Xerun AX "R2" and "R3" motor series.

SPECIFICATIONS XERUN AXE PLUS R3

Type: Brushless Sensored FOC
Current (cont./peak): 135A / 600A
Cells: 2S-6S LiPo
Motor Limits: Only supports Xerun-AXE "R2" and "R3" motor series
AXE R2: 540 / 540L / 550
AXE R3: 4274
BEC: 6V / 7.4V / 8.4V @ 6A (Switch Mode)
Waterproof: Yes
Cables: 1x 12AWG (black, 265mm), 1x 12AWG (red, 265mm)
Fan: 25 x 25 x 10mm, powered by BEC
Connectors: XT60
Programming: Per Bluetooth and "HW LINK"-App
Firmware Upgrade: Yes
Dimensions: 49.5 x 37.9 x 32.8mm
Weight: 126.5g
Application: 1/10, 1/8, 1/6 Rock Crawler

WHAT'S INCLUDED

  • 1x Xerun AXE Plus R3 ESC
  • 1x Motor
  • 1x Manual

(HW38020383)

SKU HW38020383
Brand HOBBYWING
