The precisely balanced rotor guarantees users low vibration & noise during the motor’s high-speed rotation. The maximum thrust of up to 1.25KG provides sufficient power for FAV drone(s).

Stator, rotor and shaft made of high-strength aluminum alloy greatly improve the shock resistance of the motor. Eight-bladed centrifugal fan reduces operating temperature of the motor; clear rotation direction mark on the motor case helps recognition and installation.

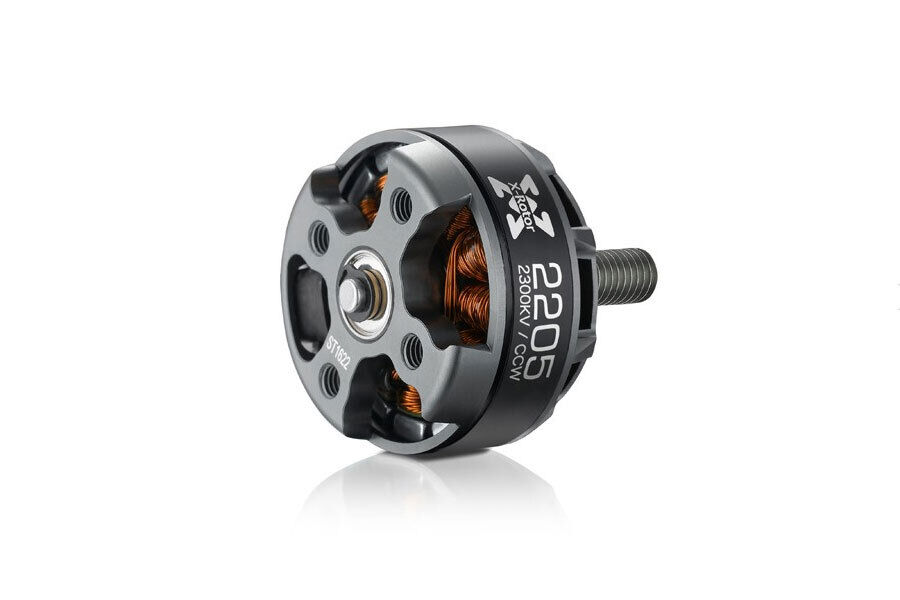

Hobbywing XRotor 2205 Motor Features:

  • Super Thrust
  • Excellent Product Design
  • Low Vibration & Noise
  • Top Quality Components

Spec Check:

  • KV Rating: 1800KV
  • LiPo Cells: 6S
  • No-Load Current(A/10V): 0.7A
  • Motor Resistance: 0.102Ω
  • Max Continuous Current / Power: 25A/625W
  • Stator Diameter/Thickness: 22mm/5mm
  • Slot/Plot Count: 12/14
  • Motor/Shaft Diameter: 28.1mm/5mm
  • Motor Length (w/o, w/ Shaft): 17.1mm/31.1mm
  • Weight: 28.4g

(HW30405111)

SKU HW30405111
Brand HOBBYWING
